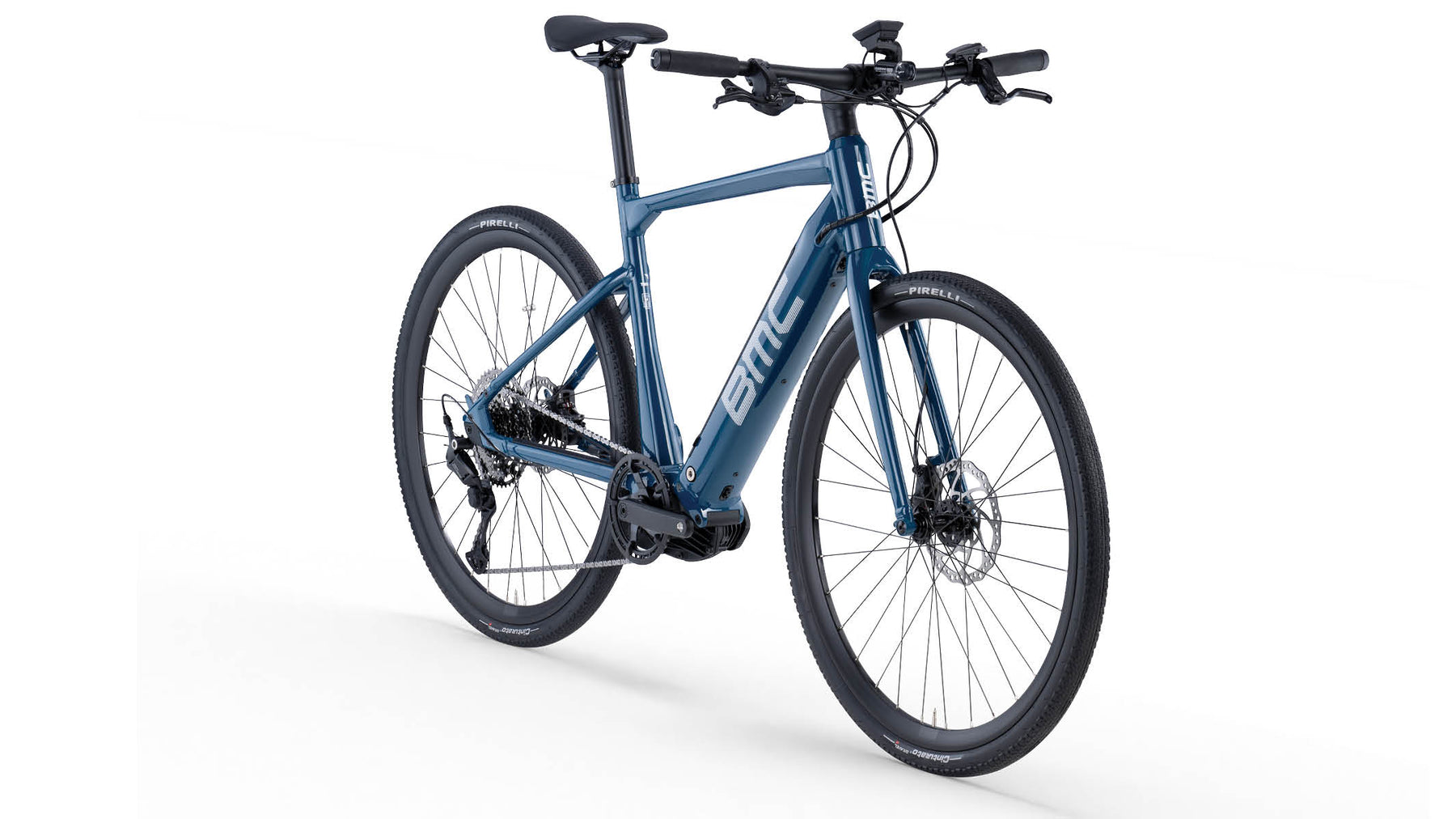

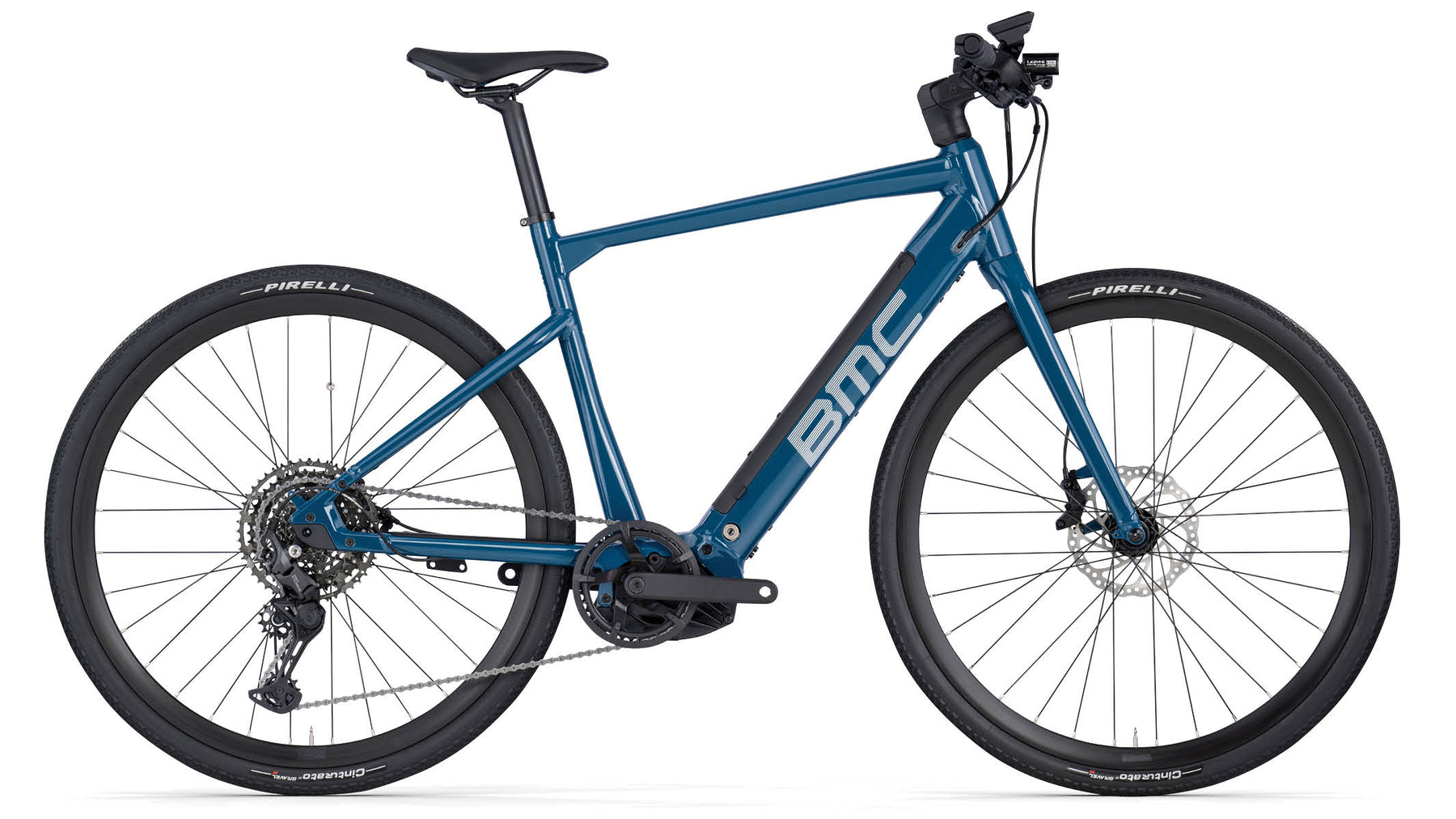

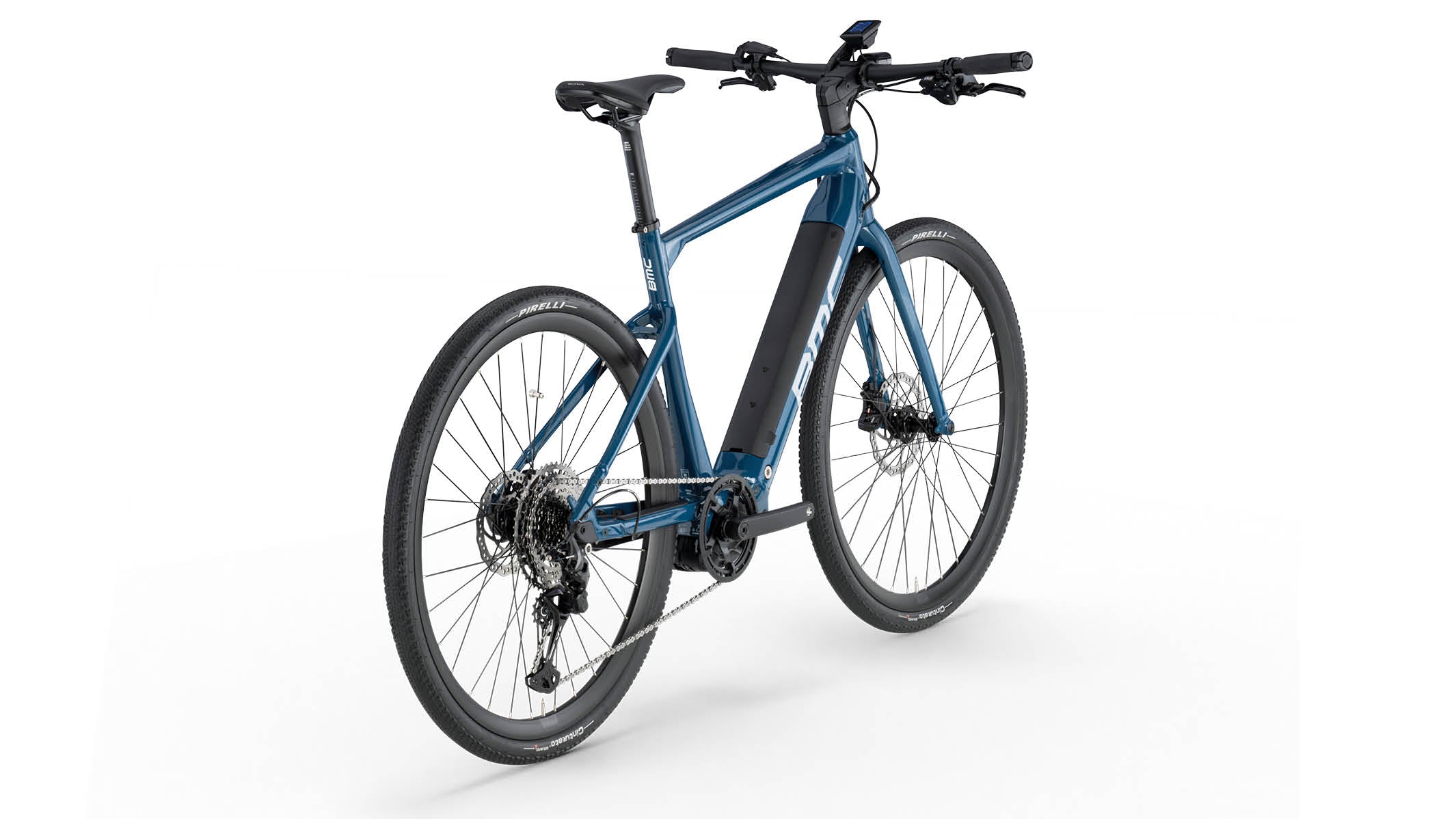

With its classy looks, exacting attention to detail and practical integration, the Alpenchallenge AL AMP TWO could only be a BMC. Designed with a premium, smooth-welded aluminum frame and fork, it’s powered by the Bosch Performance CX Smart System drive unit, delivering seamless electric assistance on every ride. The integrated 625Wh PowerTube battery boosts your range, allowing you to travel farther with ease.
Built for real-world durability, the powder-coated frame resists scratches from daily use and outdoor storage. Fender mounts offer the flexibility to add full-size fenders, keeping you prepared for all-weather riding.
For a smooth and controlled ride, the commuter e-bike features the BMC ICS MTT suspension stem, absorbing road vibrations. The Shimano CUES 10-speed drivetrain, combined with Miranda Classic cranks, ensures reliable performance, while 40mm Pirelli Cinturato Gravel H tires provide grip and comfort on both city streets and rougher paths.
Technical Overview
Frameset
Frame:
Alpenchallenge AMP Premium Aluminium | Smoothwelded | Integrated Battery | Internal Cable Routing | Powder Coat Finish | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
257 Premium Aluminium | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle
E-System
Drive Unit:
Bosch Performance CX Smart System
Battery Pack:
Bosch PowerTube | 625 Wh | Certified by Intertek Testing Services NA, Inc.
Display:
Bosch Kiox 300
Drive Unit Control:
Bosch Led Remote
Charger:
Bosch 4A Charger
Cockpit
Stem:
ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology
Handlebar:
BMC LSB 01
Seat
Seatpost:
BMC LSP 02
Saddle:
Selle Royal Vivo
Drivetrain
Crankset:
Miranda Classic x Bosch
Chainrings:
38T
Cassette:
SHIMANO CUES (CS-LG400-10)
Cassette Size:
11-48T
Chain:
SHIMANO CUES CN-LG500
Rear Derailleur:
SHIMANO CUES (RD-U6000)
Shifters:
SHIMANO CUES (SL-U6000)
Gears:
1 x 10
Brakes
Brake Levers / Calipers:
TRP HD-EU832 (180 / 160)
Rotors:
TEKTRO TR 180-17 / TEKTRO TR 160-17
Wheels
Rims:
E-SRX30
Hubs (F/R):
RX-812 | EHL-142S
Tires:
Pirelli Cinturato Gravel H | 40mm
Additional Information
Tire Clearance:
42mm
ASTM Classification:
Level 2
System Weight Limit:
120kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | <168 | 168 - 180 | 178 - 190 | >190 |
| Reach | 424 | 424 | 425 | 436 |
| Stack | 560 | 590 | 620 | 645 |
| Bar Sweep | 9° | 9° | 9° | 9° |
| Bar Width | 680 | 680 | 680 | 680 |
| BB Drop | 67 | 67 | 67 | 67 |
| Crank Length | 170 | 170 | 170 | 170 |
| Fork Length | 408 | 408 | 408 | 408 |
| Fork Rake | 45 | 45 | 45 | 45 |
| Front Center | 655 | 665 | 677 | 699 |
| Head Tube | 133 | 165 | 197 | 225 |
| Head Tube Angle | 70° | 70° | 70° | 70° |
| Rear Center | 440 | 440 | 440 | 440 |
| Seat Angle | 75° | 75° | 75° | 75° |
| Seat Tube | 480 | 510 | 540 | 570 |
| Seatpost Length | 350 | 350 | 350 | 350 |
| Seatpost Offset | 15 | 15 | 15 | 15 |
| Standover Height | 766 | 794 | 819 | 847 |
| Stem Angle | 0° | 0° | 0° | 0° |
| Stem Length | 72 | 72 | 80 | 90 |
| Top Tube | 574 | 582 | 591 | 609 |
| Trail | 75 | 75 | 75 | 75 |
| Wheelbase | 1085 | 1096 | 1108 | 1129 |
