Aperçu technique
Kit cadre
Cadre:

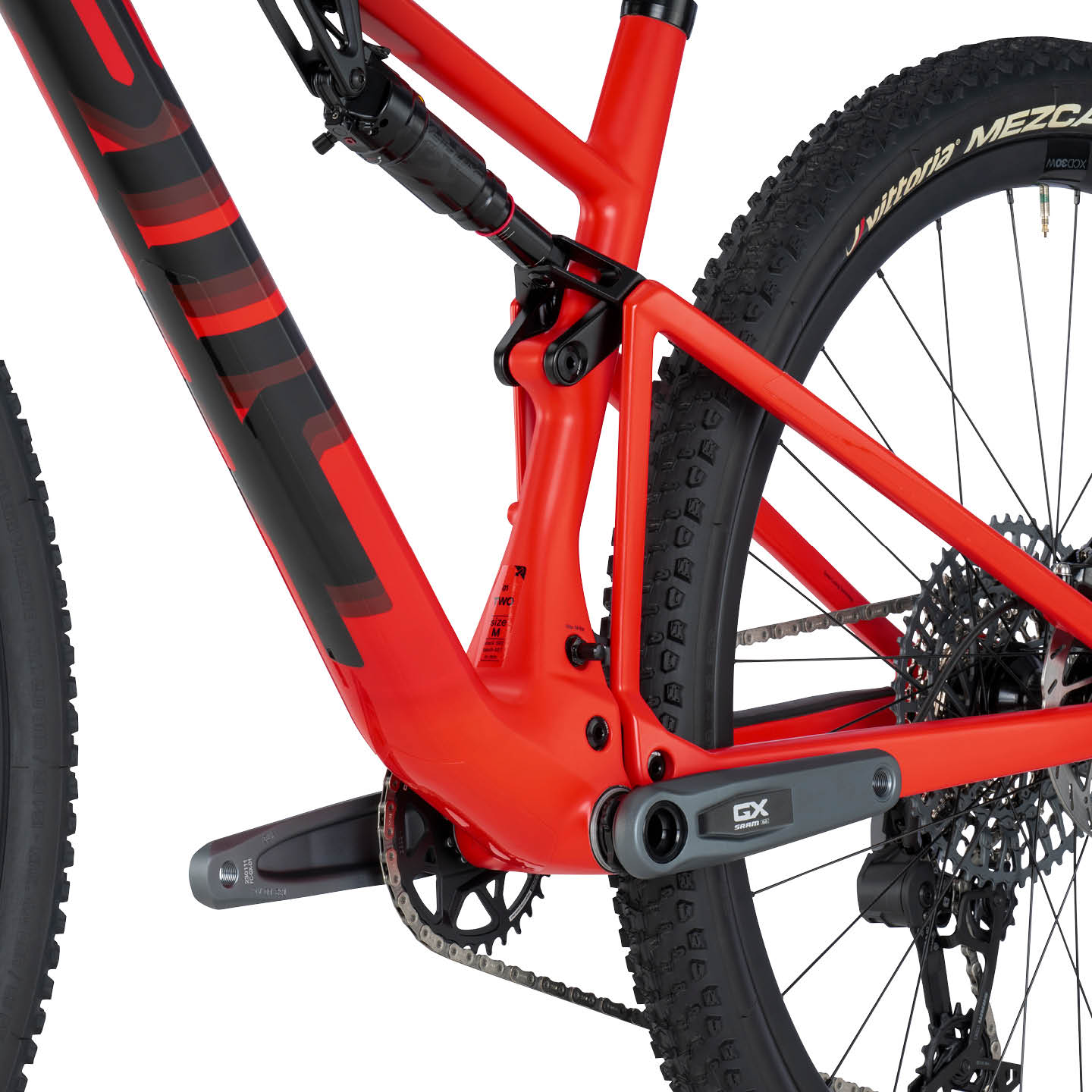

Fourstroke 01 Premium Carbon with Autodrop Technology | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Fourche:
RockShox SID SL Select+ | 110mm Travel
Suspension
Suspension Avant:
RockShox SID SL Select+
Suspension Arrière:
RockShox SIDLUXE Select+
Blocage de suspension:
RockShox TwistLoc 3P
Cockpit
Potence:
BMC MSM 01
Cintre:
BMC MFB 01 Carbon | 760mm
Seat
Tige de Selle:

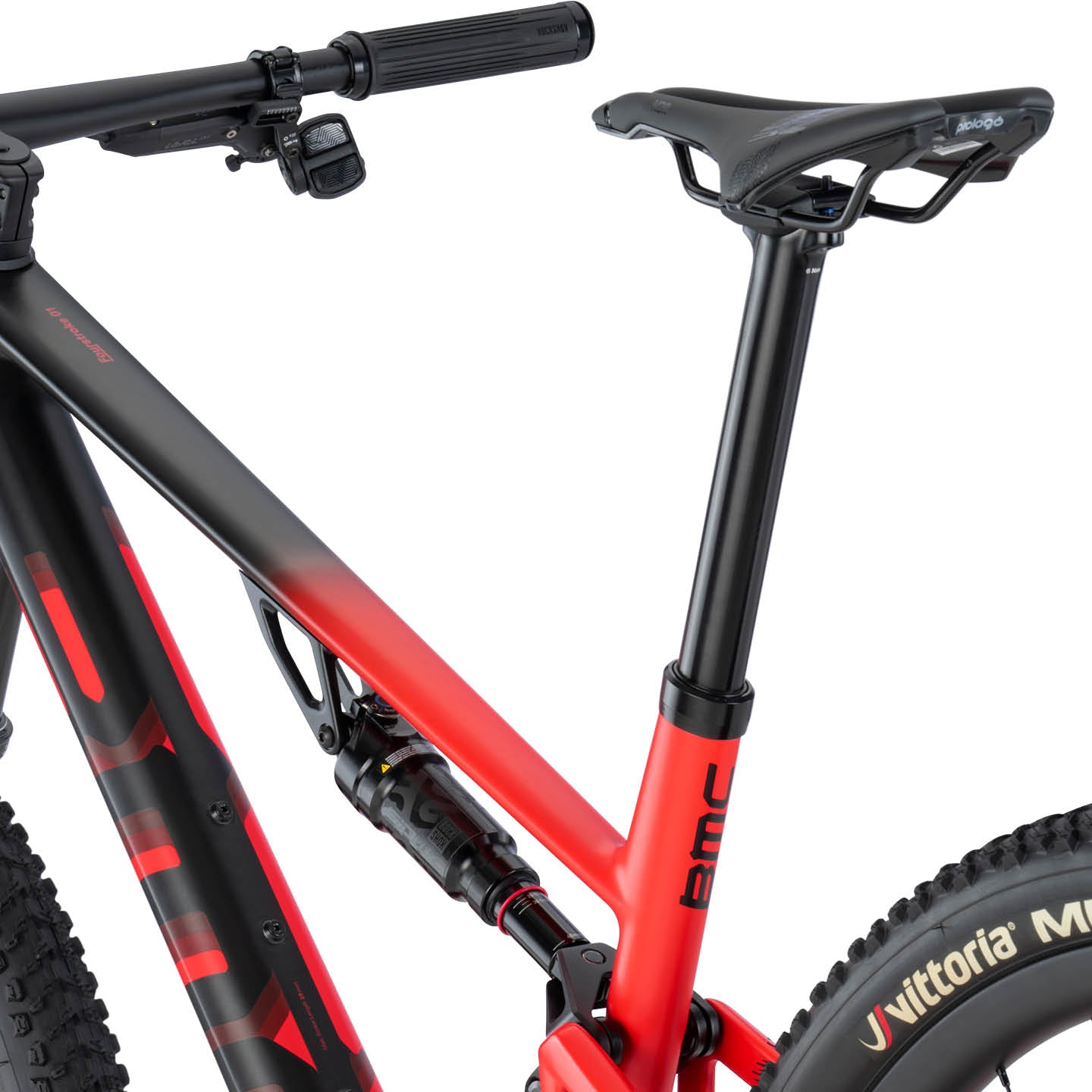

BMC Autodrop Integrated Dropper Seatpost | 80mm Drop
Selle:
Prologo Dimension NDR
Transmission
Pédalier:
SRAM GX Eagle
Plateaux:
34T
Cassette:
SRAM XS-1275 Eagle Transmission (CS-XS-1275-A1)
Taille de cassette:
10-52T
Chaîne:
SRAM GX Eagle Transmission Flattop
Dérailleur Arrière:
SRAM GX Eagle Transmission
Leviers de Vitesses:
SRAM AXS Pod Controller
Vitesses:
1 x 12
Boîtier de pédalier:
PF92 Bottom Bracket
Freins
Leviers de Frein / Étriers:
SRAM Level TLM
Disques:
SRAM HS2
Largeur de Pedalier:
160 / 160 S-M | 180 / 160 L-XL
Roues
Jantes:
XCD-30W Carbon | 30mm Inner Width
Moyeux:
XCD-30W
Pneus:
Vittoria Mezcal | 2.35"
Information Tubeless:
Tubeless Ready Rims | Tubetype Tires
Informations supplémentaires
Espace pour les pneus:
62mm measured tire
Poids sans Pédales:
11.40kg
Classification ASTM:
Level 3
Limite de poids du système:
110kg
Règlement relatif à la sécurité générale des produits (GPSR):
Consignes de sécurité GPSR (UE)
Personne responsable conformément au GPSR (UE)
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | <172 | 172-182 | 180-188 | >188 |
| Reach | 437 | 457 | 477 | 500 |
| Stack | 584 | 592 | 600 | 615 |
| Bar Rise | 4 | 4 | 4 | 4 |
| Bar Sweep | 8° | 8° | 8° | 8° |
| Bar Width | 760 | 760 | 760 | 760 |
| BB Drop | 53 | 53 | 53 | 53 |
| Crank Length | 170 | 170 | 175 | 175 |
| Fork Length | 513 | 513 | 513 | 513 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Front Center | 714 | 738 | 762 | 791 |
| Head Tube | 84 | 93 | 101 | 118 |
| Head Tube Angle | 66.75° | 66.75° | 66.75° | 66.75° |
| Rear Center | 432 | 432 | 432 | 432 |
| Seat Angle | 75.6° | 75.6° | 75.6° | 75.6° |
| Seat Tube | 420 | 440 | 470 | 490 |
| Seatpost Drop | 80 | 80 | 80 | 80 |
| Seatpost Length | 389 | 414 | 414 | 414 |
| Seatpost Offset | 0 | 0 | 0 | 0 |
| Standover Height | 725 | 725 | 725 | 765 |
| Stem Angle | -5° | -5° | -5° | -5° |
| Stem Length | 50 | 60 | 60 | 70 |
| Top Tube | 574 | 597 | 621 | 649 |
| Trail | 113 | 113 | 113 | 113 |
| Wheelbase | 1139 | 1171 | 1188 | 1218 |
