Aperçu technique

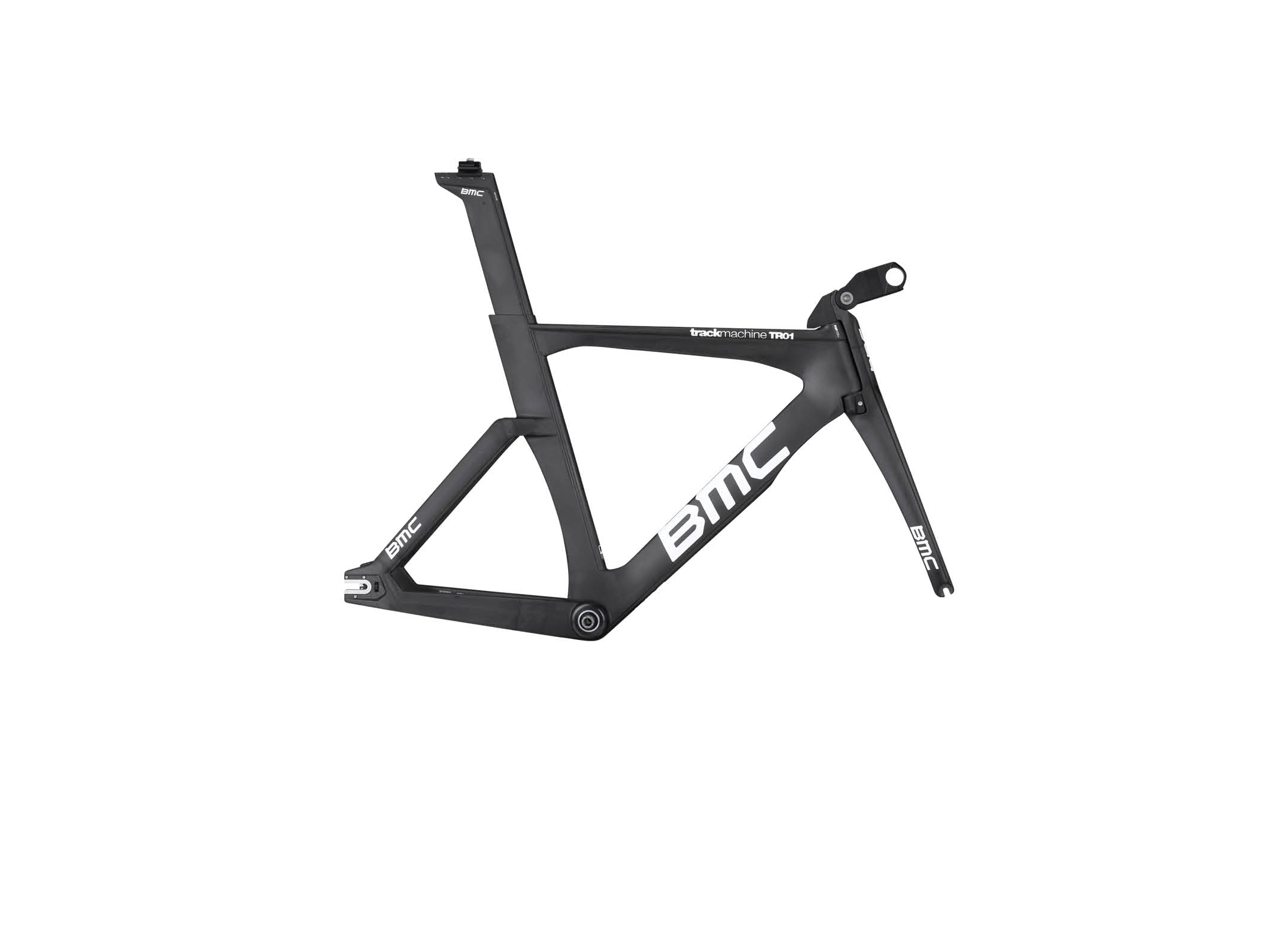

Kit cadre
Cadre:
Trackmachine TR02 | Al-13 Premium Triple-butted - Hydroformed Aluminum
Fourche:
Al-13 Premium Triple-butted | Hydroformed Aluminum
Cockpit
Cintre:
BMC RSB 3
Potence:
BMC RST 3
Tige de Selle:
Trackmachine 02 aero post | carbon
Selle:
Fizik Arione R7 Manganese
Transmission
Vitesses:
1 Speed Fixed
Pédalier:
Shimano Dura Ace Track | 48T
Cassette:
Shimano Dura Ace Track Sprocket SS-7600 | 15T
Chaîne:
KMC 1/8" Track-specific
Roues
Jantes:
DT Swiss R-520 alloy / DT Aerocomp Spokes
Moyeux:
Shimano Dura Ace Track | high flange
Pneus:
Grand Pri x TT | 700 x 23c Folding
| Size | XS | S | M | L |
|---|---|---|---|---|
| Rider Height | ||||
| Reach | 387 | 395 | 402 | 413 |
| Stack | 476 | 490 | 525 | 563 |
| Bar Drop | 125 | 125 | 125 | 125 |
| Bar Reach | 70 | 70 | 70 | 70 |
| Bar Rise | ||||
| Bar Sweep | ||||
| Bar Width | 380 | 380 | 400 | 400 |
| Base Bar Drop Flat Cockpit | ||||
| Base Bar Drop V-Cockpit | ||||
| Base Bar Reach Flat Cockpit | ||||
| Base Bar Reach V-Cockpit | ||||
| BB Drop | 50 | 50 | 58 | 58 |
| BB Drop (SLACK) | ||||
| BB Drop (STEEP) | ||||
| BB Height (SLACK) | ||||
| BB Height (STEEP) | ||||
| Chainstay | ||||
| Crank Length | 165 | 165 | 170 | 170 |
| LT | BB Drop (SLACK) | ||||
| LT | BB Drop (STEEP) | ||||
| LT | BB Height (SLACK) | ||||
| LT | BB Height (STEEP) | ||||
| LT | Chainstay | ||||
| LT | Fork Length | ||||
| LT | Fork Rake | ||||
| LT | Frame Size | ||||
| LT | Front Center (SLACK) | ||||
| LT | Front Center (STEEP) | ||||
| LT | Head Tube | ||||
| LT | HT Angle (SLACK) | ||||
| LT | HT Angle (STEEP) | ||||
| LT | Reach (SLACK) | ||||
| LT | Reach (STEEP) | ||||
| LT | Rider Height | ||||
| LT | Seat Tube | ||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||
| LT | ST Angle Actual (SLACK) | ||||
| LT | ST Angle Actual (STEEP) | ||||
| LT | ST Angle Effective (SLACK) | ||||
| LT | ST Angle Effective (STEEP) | ||||
| LT | Stack (SLACK) | ||||
| LT | Stack (STEEP) | ||||
| LT | Stand Over Height (80 in Front of BB) | ||||
| LT | Stand Over Height (Lowest Point) | ||||
| LT | Top Tube (SLACK) | ||||
| LT | Top Tube (STEEP) | ||||
| LT | Wheelbase (SLACK) | ||||
| LT | Wheelbase (STEEP) | ||||
| ST | BB Drop (SLACK) | ||||
| ST | BB Drop (STEEP) | ||||
| ST | BB Height (STACK) | ||||
| ST | BB Height (STEEP) | ||||
| ST | Chainstay | ||||
| ST | Fork Length | ||||
| ST | Fork Rake | ||||
| ST | Frame Size | ||||
| ST | Front Center (SLACK) | ||||
| ST | Front Center (STEEP) | ||||
| ST | Head Tube | ||||
| ST | HT Angle (SLACK) | ||||
| ST | HT Angle (STEEP) | ||||
| ST | Reach (SLACK) | ||||
| ST | Reach (STEEP) | ||||
| ST | Rider Height | ||||
| ST | Seat Tube | ||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||
| ST | ST Angle Actual (SLACK) | ||||
| ST | ST Angle Actual (STEEP) | ||||
| ST | ST Angle Effective (SLACK) | ||||
| ST | ST Angle Effective (STEEP) | ||||
| ST | Stack (SLACK) | ||||
| ST | Stack (STEEP) | ||||
| ST | Stand Over Height (80 in Front of BB) | ||||
| ST | Stand Over Height (Lowest Point) | ||||
| ST | Top Tube (SLACK) | ||||
| ST | Top Tube (STEEP) | ||||
| ST | Wheelbase (SLACK) | ||||
| ST | Wheelbase (STEEP) | ||||
| Fork Length | 364 | 364 | 364 | 364 |
| Fork Rake | 43 | 43 | 43 | 43 |
| Frame Size | ||||
| Front Center | 564 | 577 | 592 | 616 |
| Front Center (SLACK) | ||||
| Front Center (STEEP) | ||||
| Head Tube | 95 | 110 | 138 | 178 |
| Head Tube Angle | 73 | 73 | 73 | 73 |
| HT Angle (SLACK) | ||||
| HT Angle (STEEP) | ||||
| Pad Reach Flat Cockpit | ||||
| Pad Reach V-Cockpit | ||||
| Pad Stack Flat Cockpit | ||||
| Pad Stack V-Cockpit | ||||
| Reach (SLACK) | ||||
| Reach (STEEP) | ||||
| Rear Center | 390-420 | 390-420 | 390-420 | 390-420 |
| Saddle Height Range | ||||
| Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat Tube | 490 | 520 | 550 | 585 |
| Seatpost Drop | ||||
| Seatpost Length | 320 | 320 | 320 | 320 |
| Seatpost Offset | 15 | 15 | 15 | 15 |
| ST Angle @750mm Saddle Height (SLACK) | ||||
| ST Angle @750mm Saddle Height (STEEP) | ||||
| ST Angle Actual (SLACK) | ||||
| ST Angle Actual (STEEP) | ||||
| ST Angle Effective (SLACK) | ||||
| ST Angle Effective (STEEP) | ||||
| Stack (SLACK) | ||||
| Stack (STEEP) | ||||
| Stand Over Height (80 in Front of BB) | ||||
| Stand Over Height (Lowest Point) | ||||
| Standover Height | ||||
| Stem Angle | +/- 6 | +/- 6 | +/- 6 | +/- 6 |
| Stem Length | 90 | 100 | 110 | 120 |
| Top Tube | 528 | 540 | 558 | 580 |
| Top Tube (SLACK) | ||||
| Top Tube (STEEP) | ||||
| Trail | 58 | 58 | 58 | 58 |
| Wheelbase | 949 | 956 | 975 | 999 |
| Wheelbase (SLACK) | ||||
| Wheelbase (STEEP) |
