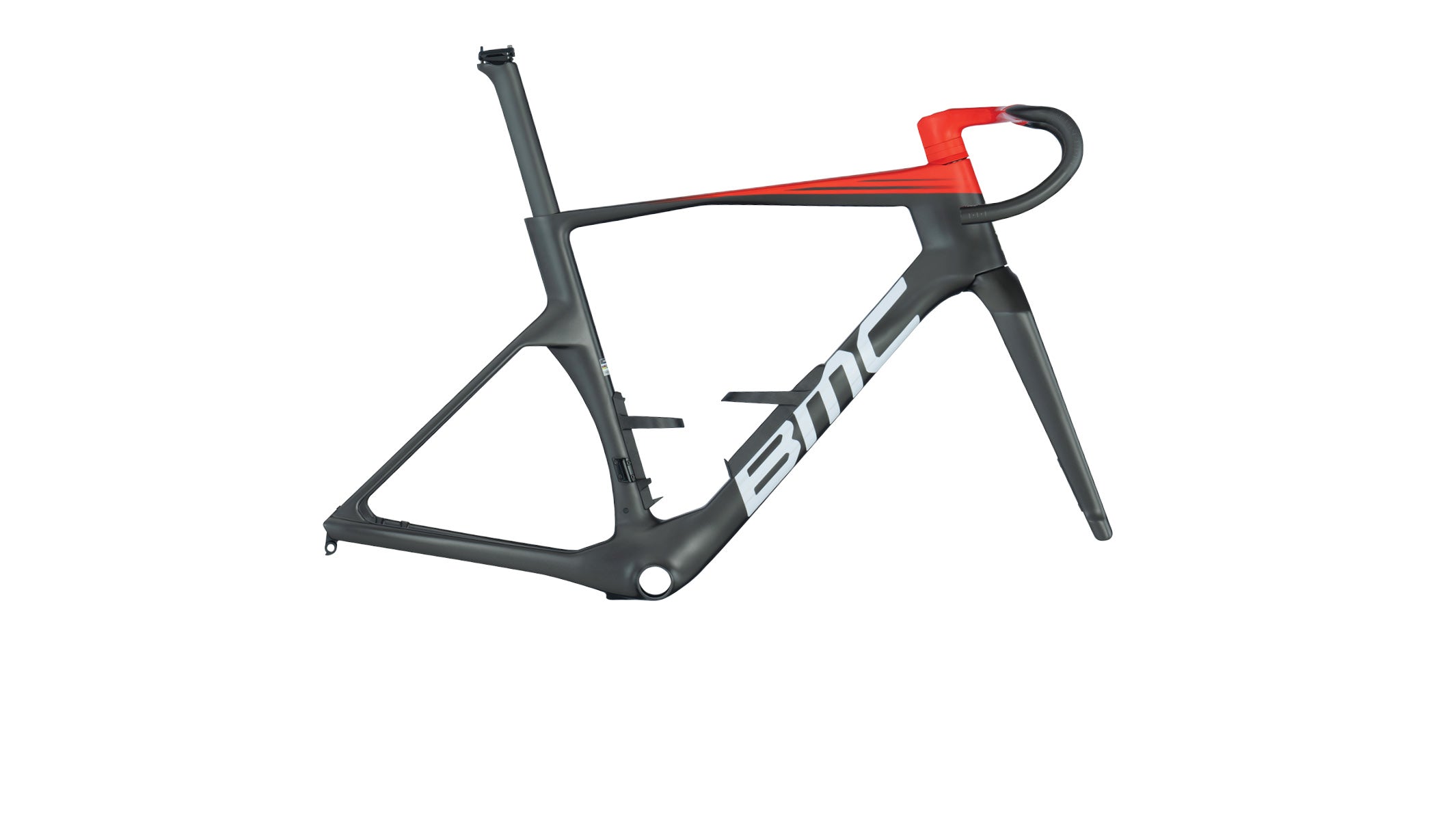

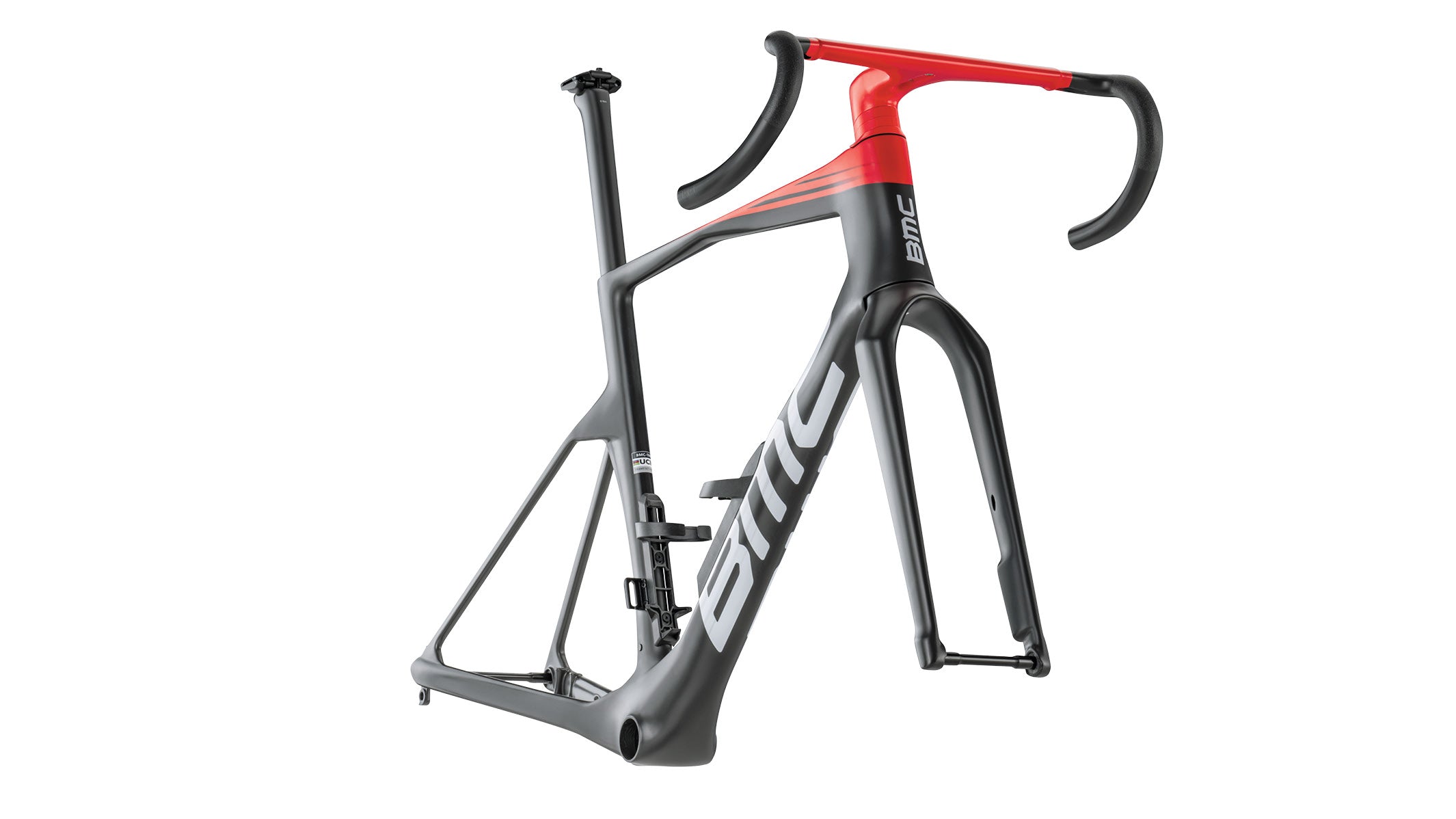

Teammachine R 01 MOD

CARBON BLACK / NEON RED

Teammachine R 01 Premium Carbon Module
ICS Carbon Aero Cockpit
Integrated Aerocore Bottle Cages

Regular priceUSD 5,999.00
USD /

SKU: 30006752
Size

Teammachine R 01 MOD

Parts & Accessories

  • Shipped to your local bike shop
The all-new BMC Teammachine R was designed for a special breed of cyclist. Light enough to ascend the most demanding climbs and stiff enough to endure the most watt-crushing sprints, the Teammachine R is the ultimate race bike. The Teammachine R 01 MOD comes with BMC’s ICS Carbon Aero Cockpit and the integrated Aerocore bottle cages.

Technology

Technical Overview

Frameset

Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

Handlebar:
BMC ICS Carbon Aero | One-Piece Full Carbon Cockpit

Seat

Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset

Accessories

Aerocore Bottle Cages

Additional Information

Tire Clearance:
30mm

ASTM Classification:
Level 1

System Weight Limit:
110kg

Size 47 51 54 56 58 61
Rider Height <166 166 - 174 172 - 180 178-186 184-192 >190
Reach 368 378 387 393 402 409
Stack 504 528 548 563 582 608
Bar Reach 72.5 72.5 72.5 72.5 72.5 72.5
Bar Width 360/420 360/420 360/420 360/420 360/420 360/420
BB Drop 69 69 69 69 69 69
Fork Length 367 367 367 367 367 367
Fork Rake 48 48 43 43 43 43
Front Center 568 586 589 599 614 630
Head Tube 108 133 149 165 185 211
Head Tube Angle 71.5 71.5 72.3 72.3 72.3 72.3
Rear Center 410 410 410 410 410 410
Seat Angle 74 74 73.5 73.5 73 73
Seat Tube 418 463 499 519 541 570
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 10 10 10 10 10 10
Stem Angle -15 -15 -15 -15 -15 -15
Stem Length 90 100 100 110 110 120
Top Tube 522 532 552 562 582 598
Trail 63 63 63 63 63 63
Wheelbase 968 986 989 999 1015 1030
