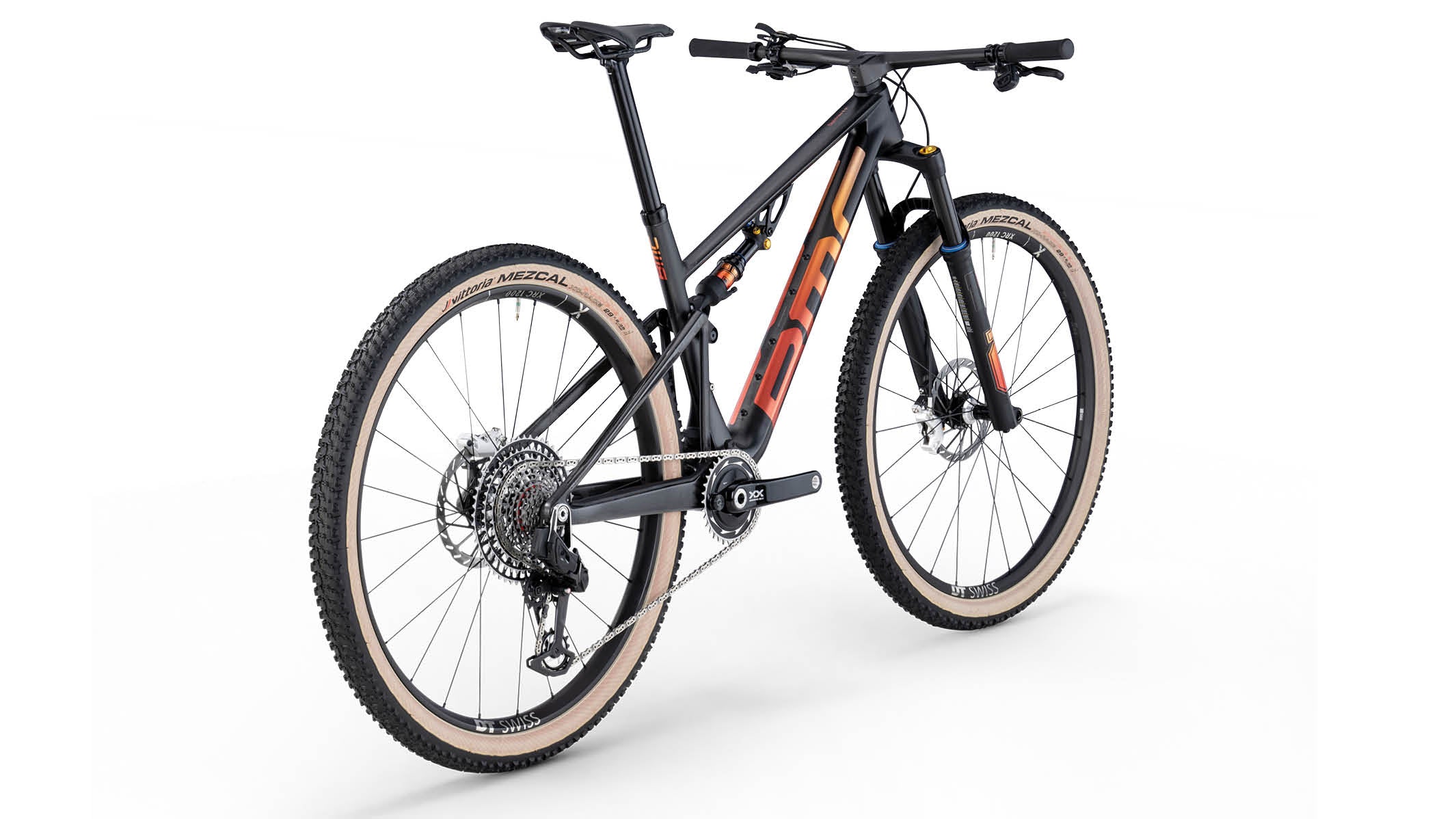

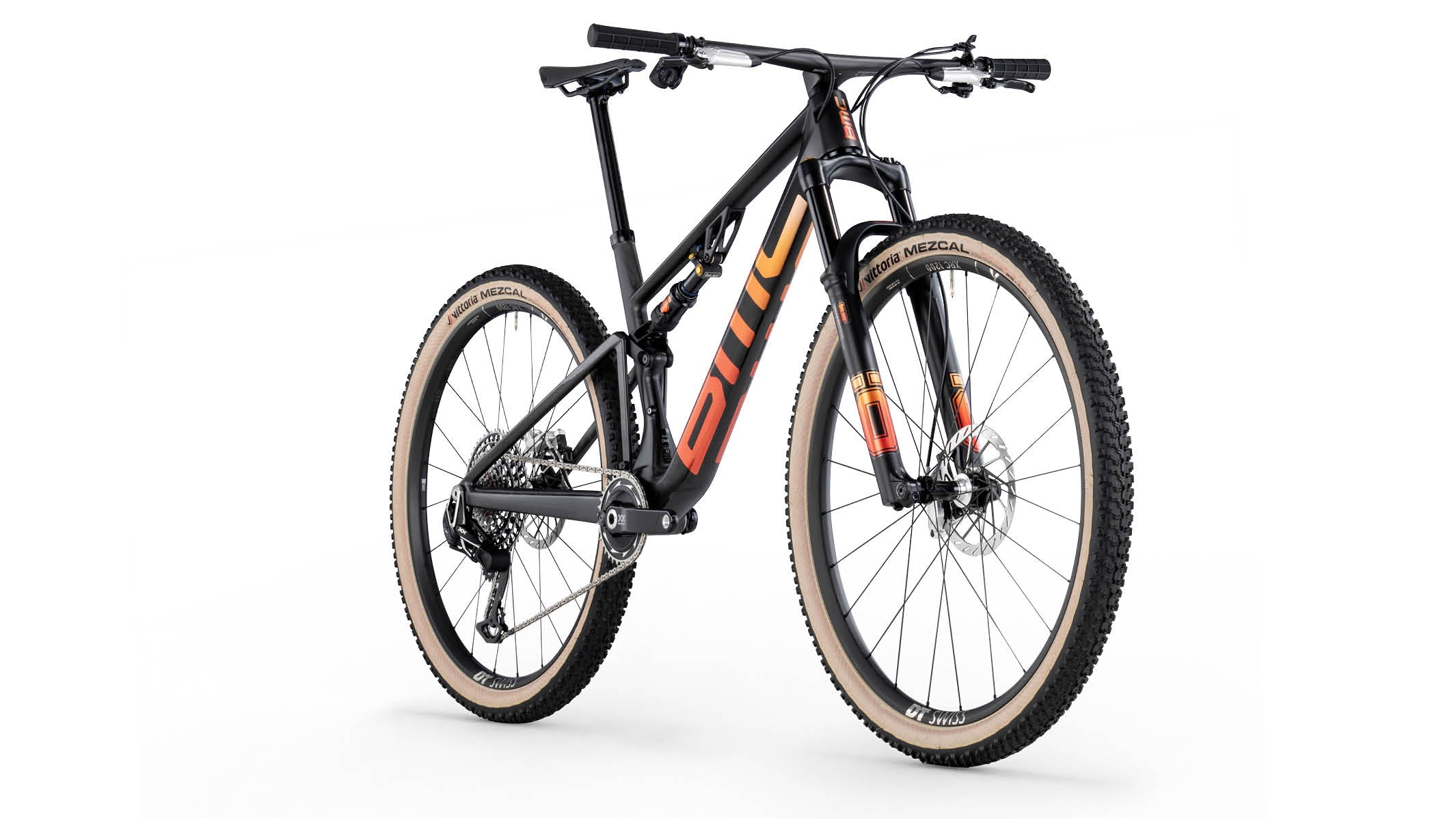

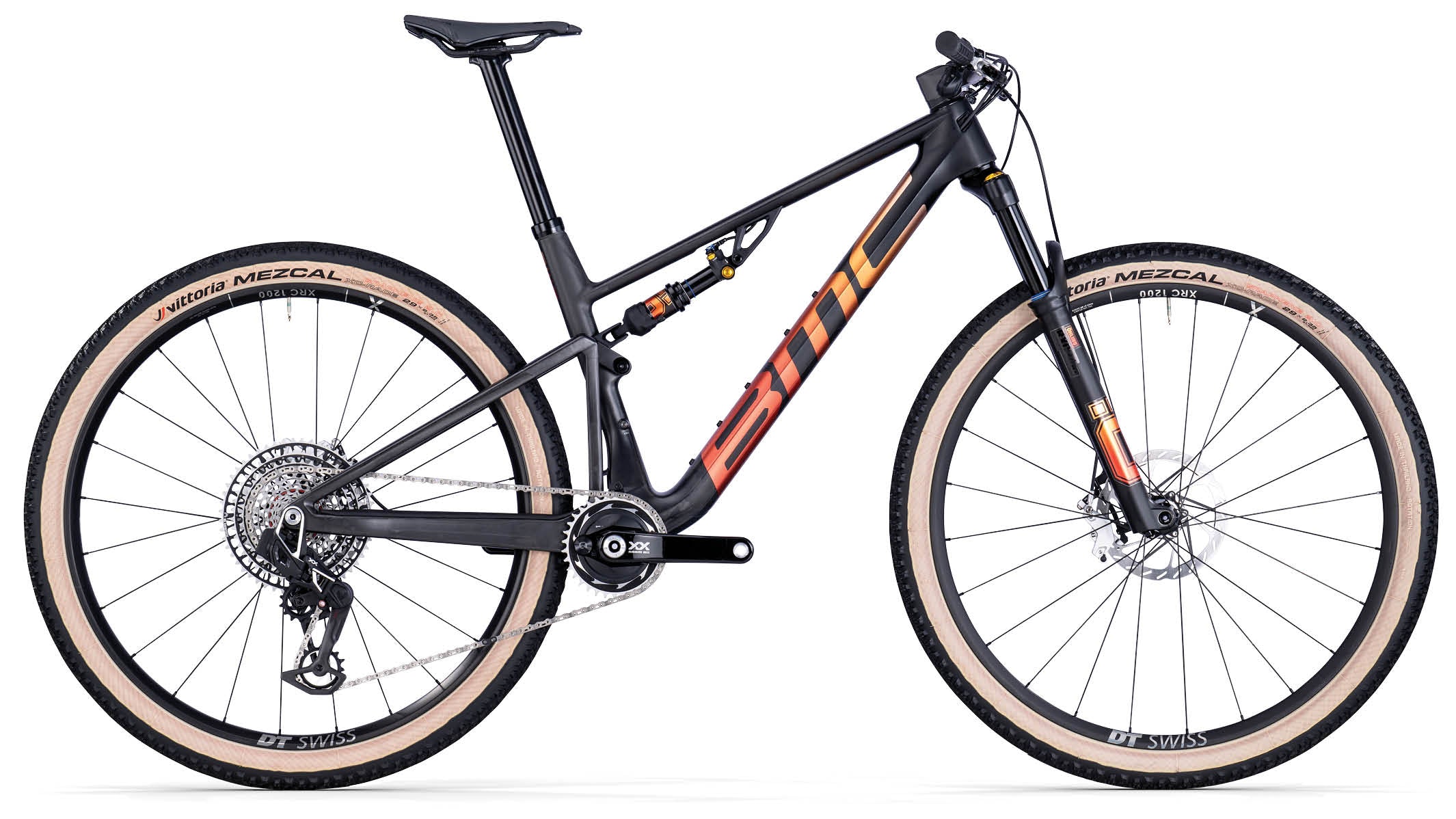

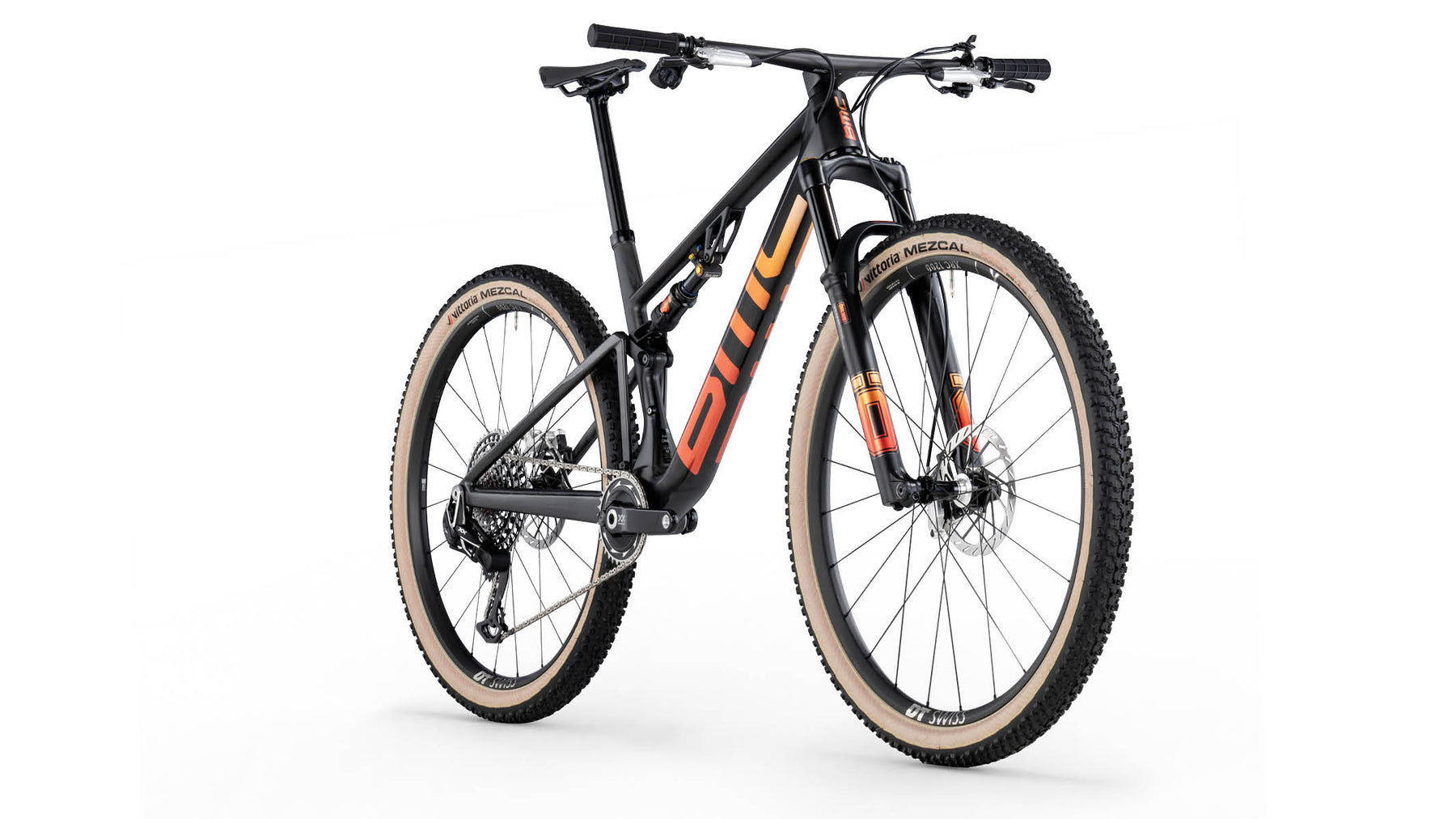

Name: Fourstroke R 01 ONE
Brand: BMC
SKU: 30007093
Price: 12999.0 USD
Availability: OutOfStock

Carbon / Firestorm

Fourstroke R 01 frameset with 120mm APS suspension, Autodrop seatpost. Fitted with only the best: Öhlins suspension, SRAM XX SL Eagle and DT Swiss XRC 1200.

USD 12,999.00

SKU: 30007093

Size —

Compatible Parts & Accessories

Check for availability within our Retailer Network

[{"id":54912857244034,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30007093","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Fourstroke R 01 ONE - S","public_title":"S","options":["S"],"price":1299900,"weight":20000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906523834","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54912857276802,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30007094","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Fourstroke R 01 ONE - M","public_title":"M","options":["M"],"price":1299900,"weight":20000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906523827","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54912857309570,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30007095","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Fourstroke R 01 ONE - L","public_title":"L","options":["L"],"price":1299900,"weight":20000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906523810","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54912857342338,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"30007096","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Fourstroke R 01 ONE - XL","public_title":"XL","options":["XL"],"price":1299900,"weight":20000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906523803","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Purpose-built for podium chasers, the Fourstroke 01 brings together cutting-edge BMC design and uncompromising Impec Lab engineered performance. At its core is BMC’s APS suspension kinematics and the ultra-efficient Autodrop integrated dropper seatpost, delivering efficiency and speed on any terrain. Its Premium Carbon frame is optimized for modern XC racing thanks to a progressive geometry, and its 120mm of front and rear travel. New this year, the ICS Carbon XC one-piece cockpit gives you additional control and confidence thanks to a design flex and compliance. Outfitted with a SRAM XX SL AXS Eagle Transmission, suspension relying on Öhlins RXC34 Carbon fork, and Öhlins TXC2 Air shock, as well as spinning the trusted and light DT Swiss XRC 1200 wheels, it’s a bike ready to race from the first ride.

Technology

Autodrop Technology

Your all-new secret weapon provides the first ever fully integrated, automatic dropper post for on-the-fly and squat-free seatpost dropping to push further faster, even on the most technical XC courses.

Optimized APS Suspension

More traction equals more speed and that is what we’re after. Next-level kinematics tuning, and best-in-class suspension performance delivers full traction, great efficiency, and active suspension on every terrain.

Go Long

This medal-winning marathon machine is versatile by design. Allowing you to go far, the Fourstroke 01 has been optimized to fit two water bottles and offers a tire clearance of 62mm to fit modern 2.4” XC tires.

Redefined Geometry

BMC Race is tailored to a fast and progressive racing style designed to attack the steepest and loosest courses with the improved 66.5˚ head angle and a long front-end.

Technical Overview

Frameset

Fork:
Öhlins RXC34 Carbon | 120mm Travel | DT Swisss Remote Lockout

Suspension

Front Suspension:
Öhlins RXC34 Carbon | 120mm Travel | DT Swisss Remote Lockout

Rear Suspension:
Öhlins TXC2 Air | 120mm Travel | DT Swiss Remote Lockout

Remote Lockout:
DT Swiss Remote Lockout

Cockpit

Handlebar:
ICS Carbon XC | One-Piece Full Carbon Cockpit

Seat

Seatpost:
BMC Autodrop Integrated Dropper Seatpost | 80mm Drop

Saddle:
Prologo Dimension NDR Nack

Drivetrain

Crankset:
SRAM XX SL Eagle Carbon

Chainrings:
34T

Power Meter:
SRAM XX SL Power Meter

Cassette:
SRAM XX SL Eagle Transmission XS-1299

Cassette Size:
10-52T

Chain:
SRAM XX SL Eagle Transmission Flattop

Rear Derailleur:
SRAM XX SL Eagle Transmission

Shifters:
SRAM AXS Pod Controller

Gears:
1 x 12

Bottom Bracket:
PF92 Bottom Bracket

Brakes

Brake Levers / Calipers:
EMBARGO

Rotors:
SRAM HS2 | Centerlock

Rotor Size (F/R):
180 / 180mm

Wheels

Rims:
DT Swiss XRC 1200 | 30mm Inner Width

Hubs (F/R):
DT Swiss

Tires:
Vittoria Mezcal | Tubeless | 2.35"

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
62mm

Weight without Pedals:
11.0kg | Size M with all accessories

ASTM Classification:
Level 3

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	L	XL
Rider Height	<172	172-182	180-188	>188
Reach	437	457	477	500
Stack	584	592	600	615
Bar Sweep	7.9°	7.9°	7.9°	7.9°
Bar Width	760	760	760	760
BB Drop	38	38	38	38
Crank Length	165	170	170	170
Fork Length	530	530	530	530
Fork Rake	44	44	44	44
Front Center	711	743	760	790
Head Tube	84	93	101	118
Head Tube Angle	66.5°	66.5°	66.5°	66.5°
Rear Center	431	431	431	431
Seat Angle	75.6°	75.6°	75.6°	75.6°
Seat Tube	420	440	470	490
Seatpost Drop	80	80	80	80
Seatpost Length	389	414	414	414
Seatpost Offset	0	0	0	0
Standover Height	727	727	727	727
Stem Angle	-19°	-19°	-19°	-19°
Stem Length	50	60	60	70
Top Tube	576	599	623	651
Trail	115	115	115	115
Wheelbase	1140	1172	1189	1219
